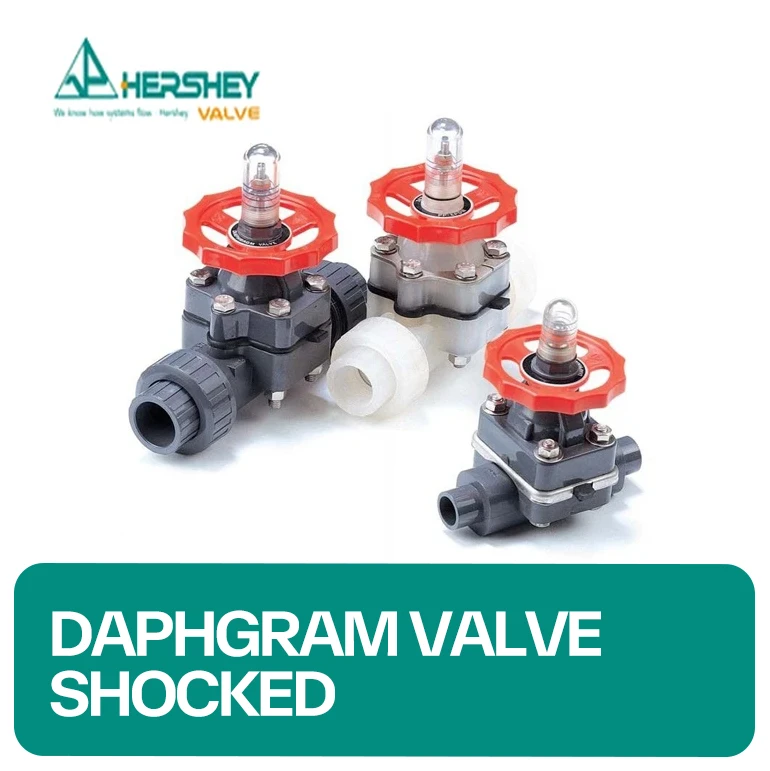

Hershey Series VP720 / VP730
Hershey Series VP720 / VP730
- Pressure rating: 100 PSI @ 73.4℉ (23°C)
- Smooth operation with clear indication of opening/closing through the gauge cover.
- Low maintenance cost with replaceable diaphragm and long service life.
- Adjustable stopper can avoid over tightening.
Caution!
The valve is completely closed when the handwheel cannot turn further with normal torque. Continuously forcing the handwheel in this condition may cause irreversible diaphragm damage.
Character:
Not recommended for service or testing with compressed air or gases.
- Spec
• Pressure rating: 100 PSI
• Smooth operation with clear indication of opening / closind through the gauge cover.
• Low maintenance cost with replaceable diaphragm and long service life
• Adjustable stopper can avoid over tightening
| Materials | UPVC, CPVC, PP, PVDF |
| Seat / Seal | PTFE, EPDM, FPM |
| Stem | C3602, SUS 304, SUS 316 |
| Standard | ANSI, JIS, DIN, BS |
| Size | 1/2" – 2" (DN15–50) |
| Pressure | 100 PSI (7 kg/cm2) |
| Connection | Union Socket |
| Working Temperature | 0–55°C (PVC), 0–80°C (PP), 0–90°C (CPVC), -20–120°C (PVDF) |
| Brand | HERSHEY (Taiwan) |
| Application | Pipeline systems for purified/RO/DI water, acid/alkaline chemicals, salt water, drinking water, wastewater. |
